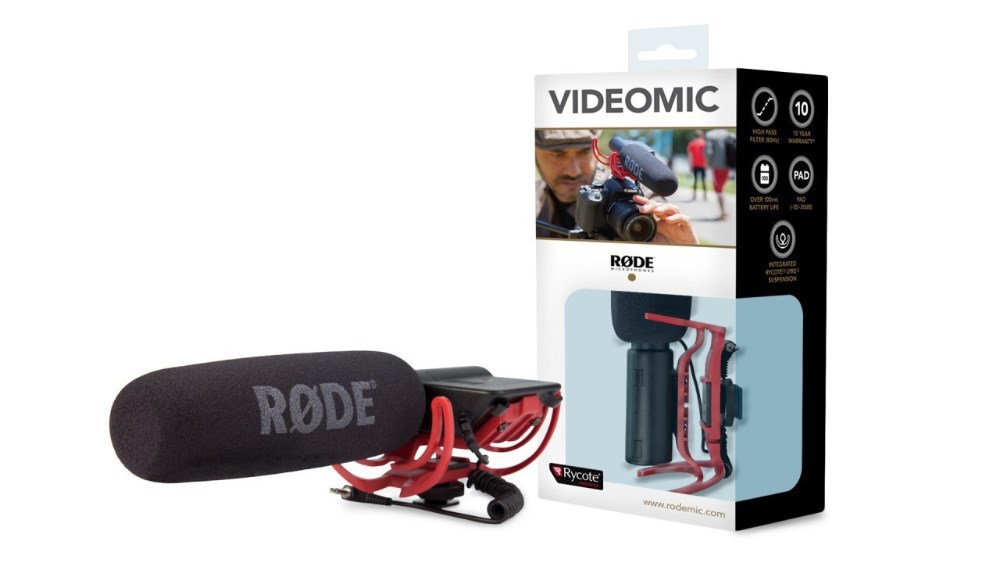

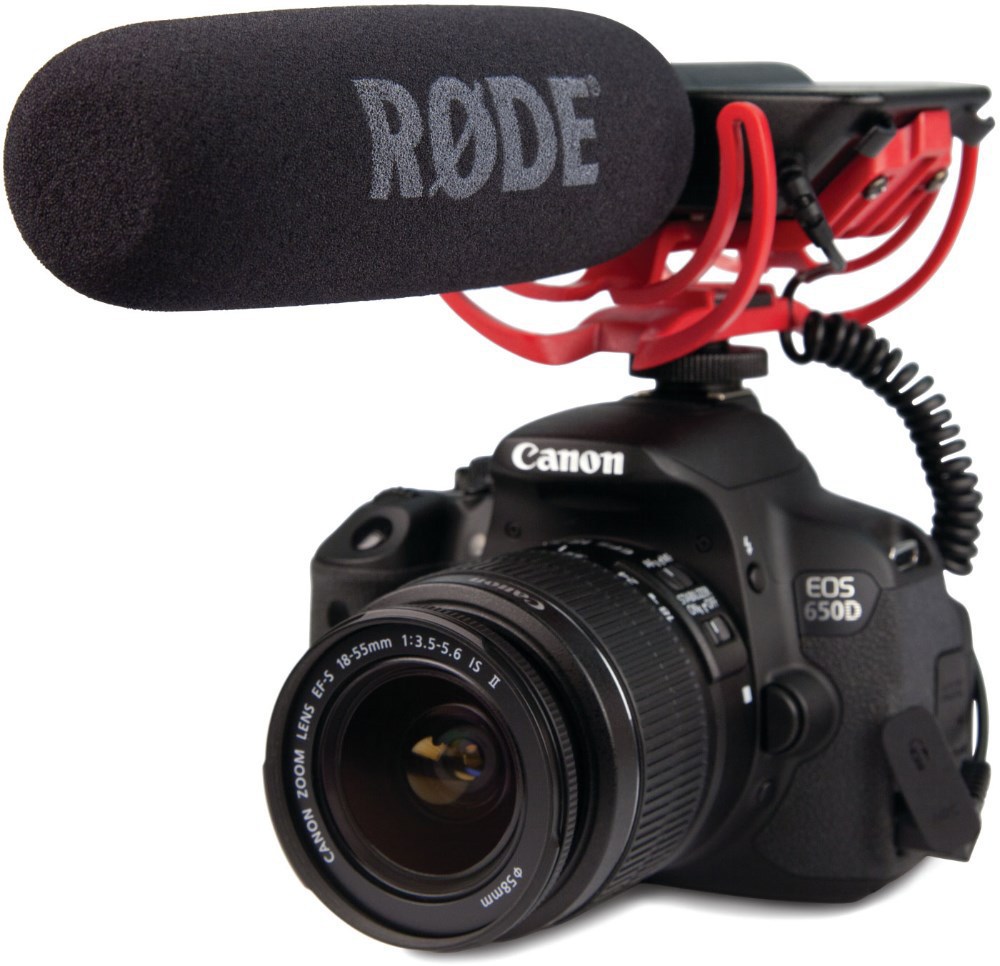

The VideoMic with Rycote Lyre Suspension System from Rode is a shotgun microphone that can easily be mounted on a DSLR
camera. It features a Rycote suspension system that attaches to the
camera's shoe. The VideoMic is lightweight, and when mounting on a
camera it does not appear in the frame. The VideoMic can also mount
to Rode's boompoles for elevated audio capture. Its super-cardioid
polar pattern attenuates sounds from the sides. The result is a
signal that sounds closer to the camera, even when shooting in
noisy environments or at moderate distances.

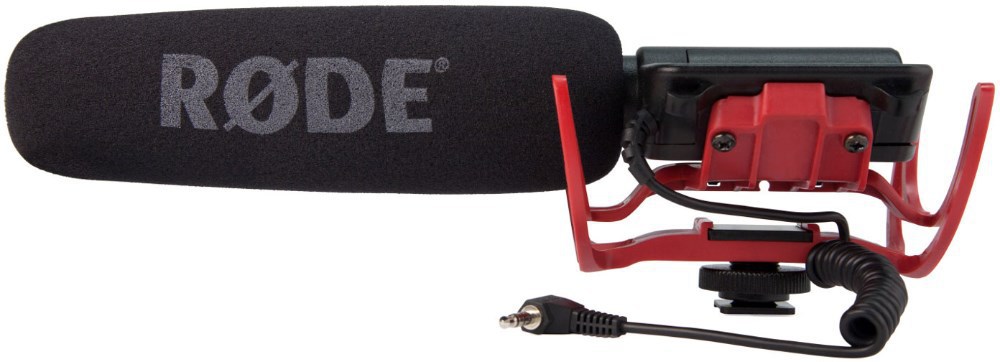

The included Rycote Lyre is a non-elasticated suspension structure
composed of a hard-wearing thermoplastic. It is more effective at
acoustically decoupling microphones from unwanted vibrations,
handling and cable-borne noise than elasticated suspensions. The
lyre remains effective at a wide range of temperatures and is
virtually indestructible. It will never wear out, sag, snap or
require any rethreading to maintain its effectiveness.
An attached, coiled cable terminates to a 1/8" (3.5mm) mini output
connection. The VideoMic features a condenser element that utilizes
a standard 9 Volt battery (sold separately). The microphone will
run for approximately 100 hours on a single battery.
- Barrel Canceling Pick Up
- The Rode Video Mic functions as a true line plus gradient
microphone with a super-cardioid pattern in the front and a barrel
that cancels side-audio. The result is maximum pick up of the
source in highly ambient and noisy environments.
- Selectable 10 or 20dB Pad
- When capturing audio in loud environments, the VideoMic offers
built-in attenuation. The selectable 10 or 20dB pad lessens the
microphone's sensitivity, allowing it to handle higher SPL levels
without sacrificing clarity.
- High Pass Filter Switch
- A high-pass filter switch eliminates room ambiance and noise below
80Hz. This results in improved intelligibility while recording
around machinery, wind or close proximities.
- Internal Power
- The condenser element is powered with a standard 9-volt battery for
up to 100 hours (approximately).
| Transducer | Condenser |
| Polar Pattern | Super-cardioid |
| Frequency Response | 40 Hz to 20 kHz |
| High-Pass Filter | @ 80 Hz, 12 dB/octave, selectable |
| Dynamic Range (Typical) | 114 dB (per IEC651, IEC268-15) |
| Signal-to-Noise Ratio | 74 dB (1 kHz @ 1 Pa; per IEC651, IEC268-15) |
| Maximum Input Sound Level | 134 dB (@ 1% THD into 1kΩ) |
| Power Requirements | 9V battery |
| Output Impedance | 200Ω |
| Output Connectors | 1/8" (3.5 mm) stereo mini plug, male |
| Pad | -10 and -20 dB |
| Dimensions (Ø x H x L) | 2.55 x 4.02 x 8.84" (65 x 102 x 250 mm) |
| Weight | 6.21 oz (176 g) |
